The safety mat is a pressure-sensitive safety protection device. When a set minimum weight is applied to the safety mat, the switch will be closed, and the controller will send a stop signal to the protected machine to stop its movement. Reliably protect the operator from various potential hazards.

Compared with other protection aspects such as mechanical fences, sliding doors, and pull-back limits, the safety mat system is more free, flexible, and labor-saving. The full view and full access characteristics of the working area are still retained, which not only improves safety, but can also reduce Accumulation of damage. The safety mat controller has high reliability: each safety mat has 4 wires connected to the safety mat controller, the purpose is to provide a redundant safety protection to prevent incorrect wiring of the safety mat or physical damage to the wiring. Safety mats and safety mats can also simplify routine tasks such as machine setup, maintenance and repairs.

Features: 1. Any rectangular size can be assembled

2. Have CE certification

3. Use in combination with safety mat controller

Product introduction:

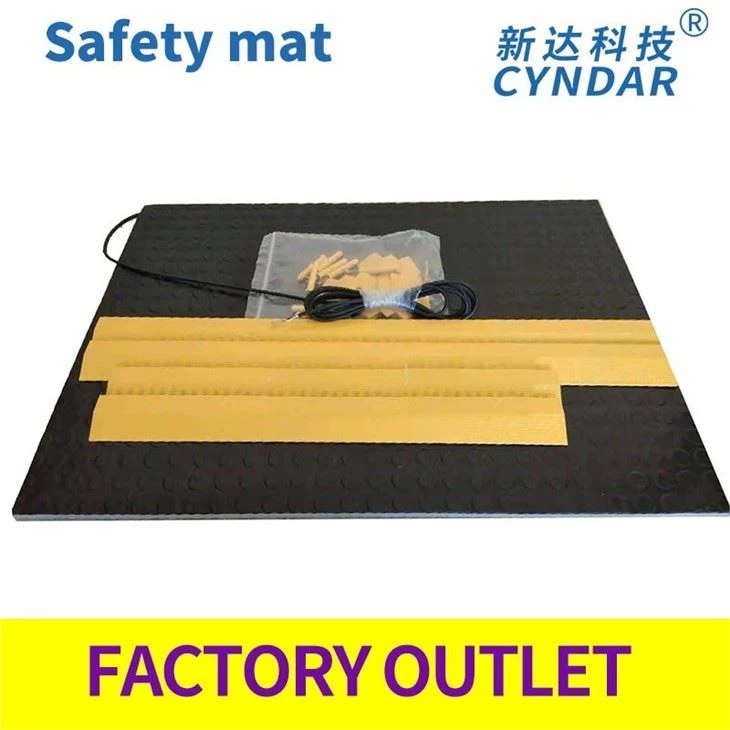

Sensing safety carpet	PSM4
Adaptive detection range	Detect the presence of operators and items
Recommended occasions	It is applicable to the safety protection of mixed areas of people and small vehicles
Service environment requirements	It is suitable for indoor and outdoor use, and the ambienttemperature range is - 10 degree - plus 60 degree
Safety carpet thickness	14 millimeter
Surface protective material	NBRrubber

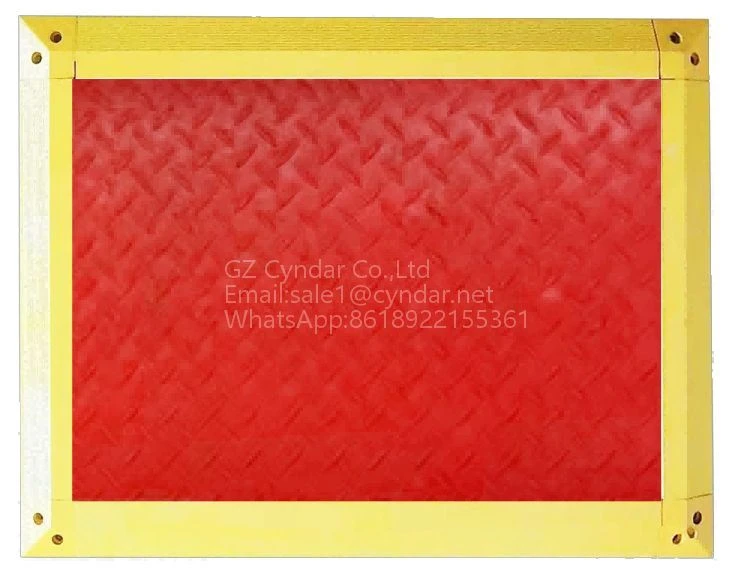

Surface pattern and color	pattern anti-skid surface (black, yellow, red)
Edge bandingform	Aluminurwdgesealing
Applicable industry	Light and heavy industrial occasions such as paper industry, electronic industry, automobilewelding production line, forging production line, general industrial application and automatic palletizer
Ordering instructions	Provide the size of safety carpet and the size or pattern of safety protection area

Model specification

PSM4-XXXYYY-Z

1.XXX: length dimension (unit: mm)

2.YYY: width dimension (unit: mm)

3.Z: color

B: black（Standard color）.R: Red. Y: Yellow.

Size description:

Size selection:

The following sizes are regular sizes, other sizes can be customized or spliced, please consult customer service for details

Product Size（mm）	type of output	Entry cable
300300	NO	4-core wire
400400	NO	4-core wire
500250	NO	4-core wire
600400	NO	4-core wire
750250	NO	4-core wire
750500	NO	4-core wire
750750	NO	4-core wire
1000500	NO	4-core wire
1000750	NO	4-core wire
10001000	NO	4-core wire
1500500	NO	4-core wire
1500750	NO	4-core wire
15001000	NO	4-core wire

Technical parameters of safety mats:

Tsize	It can be specially made according to requirements, with length of 200mm-1000mm and width of 200mm-3000mm
Underpressure	Dynamic 500kg, solid 700kg
Surface material	Rubber(red / yellow / Black optional)
Control level	Shared with controller to reach level 3
Degreeof protection	IP65
Ambient temperature	-10 degree to 60 degree
Thickness	14mm
Trigger force	Adult 30kg
Cable length	3Mand 5moptional
Response time	Less than 30ms
Weight	About30kg/ sq.m
Chemical resistance	Generally
Material ability	Generally
Service life	A million times
Waterproof	Generally
Anti mineral acid	Generally
Anti organic acid	Generally
Anti alcohol	Generally
Anti ethanol	Generally
Corrosion protection	Generally
Anti petroleumsolvent	Generally
Anti bio oil solvent	Generally
Type of output	No(normally open)
Maximum voltage	DC24V

Safety controller parameters:

Model	Tner-A31
Power supply	DC24V
Voltage tolerance	plus 10 percent /-20 percent
Power waste	2.9W
Output
Relay safety output	3N0 plus 1NC
Transistor signal output	< 500ma="">
Relay contact capacity
AC-1	6A/250VAC/1500VA
AC-15	4A/240VAC
DC-1	6A/24VDC/150W
DC-13	4A/24VDC
Maximum switching capacity	12A (distributed on all safety output contacts)
Contact resistance	<>
Minimum load	10mA/5V
Contact material	AgSn02 plus 0.2pmAu
